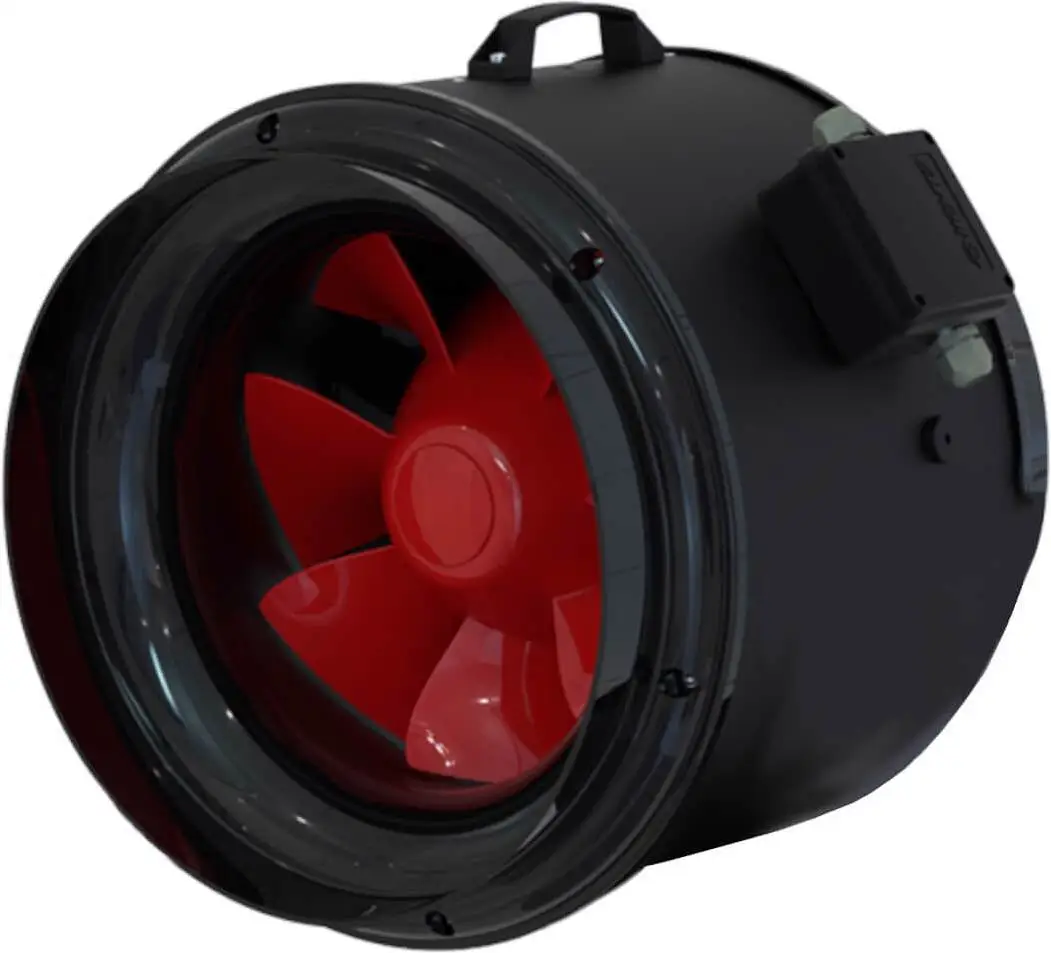

Vents Boost

Dimensions and technical details 220-240 Volt ~ 50 Hertz Housing colour: black  Housing material: plastic with steel jacket Nominal size: 355 mm Speed levels: 1 Wattage: 150 W Power consumption: 0.66 A Rotation speed: 1470 rpm Airflow rate: 2485 m³/h Max. sound pressure level Lp-3m: 43 dB(A) Max. ambient temperature: -25 to +55°C IP code: IPX4  Weight: 15 kg Airtight electric terminal box  Optional P3-5.0 N V speed controller sold separately Mounting options: in any position, integrated handle for hanging installation Application: supply and extraction of air in commercial or industrial buildings Several fans can be mounted in the same system: parallel installation for increased airflow rate, in series for increased pressure Model A (mm) Ø D (mm) D1 (mm) H (mm) Boost 355 388 350 390 450 Optional accessories are available in our shop.
