Rs Pro Polyester Fibre Air Filter Pad 20x16x2in

Filter type = Pad
Dimensions nom. = 16 x 20 x 2inch
Dimensions absolute = 394 x 495 x 45mm
Filter class = G4
Initial pressure drop = 69Pa
Final pressure drop = 250Pa
Color = White
Housing material = Galvanized steel
Material = PET
Height absolute = 394mm

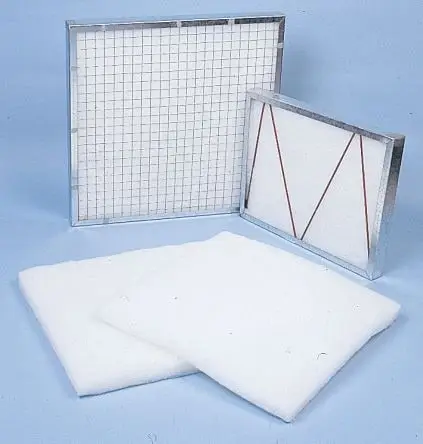

Mats, inserts and frames. Polyester air filter inserts: Wadding consisting of 100% hollow spiral crimped polyester fibers. These air filter media are thermally bonded via two-component fibers and calibrated to a specific thickness. They are available in four common sizes for filter panels:,730-2918; 20 x 16 x 2″,730-2912; 20 x 20 x 2″,730-2921; 24 x 24 x 2″,730-2924; 25 x 20 x 2″,Polyester filter mat: batting consisting of 100% hollow spiral crimped polyester fibers. This air filter media is thermally bonded via two-component fibers and calibrated to a specific thickness. Flammability according to DIN 53438. This mat measures 2.5 x 2 m and is 50 mm thick and can be cut to size as required.,Spare frames: These hold the filter inserts of the same size with a wire holder in a W-shape.
