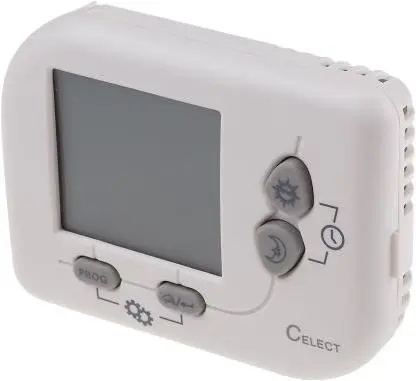

Rs Pro LARGE SCREEN RF868MHz THERMOSTAT

Program duration = 7 days
Additional features = LCD display with backlight
Contact rating = 10 (3) (maximum)A
Contact voltage = 24 → 240 V ac
Supply voltage = 240 V ac
Temperature max = +50 °C
Temperature min = 0 °C
Temperature range = 0 → +50 °C

Wireless room thermostat with large LCD screen and backlight. Programmable wireless room thermostat, pre-wired for easy connection. Will replace most home thermostats and is designed for use with electric, gas, oil heating or cooling. The functions of this thermostat are divided into two units, the receiver and the controller. The receiver is used to connect the wiring and ON/OFF control for heat or cooling. The thermostat can be kept in any room or area up to 20m away. Digitally programmable 5+1+1 day RF room thermostat with 6 comfort/drop periods daily, i.e. morning, afternoon, evening and night. The time periods are pre-programmed but can be changed to suit your life patterns. Override option available, ideal for vacations etc. Large backlit LCD display and easy push button temperature adjustment (up and down), constant display of actual room temperature and set temperature. The transmitter and receiver have DIP switches for address selection. The receiver ignores messages sent by the transmitter with a different address. Frequency band: 868 MHz Temperature measurement 0.0 – 40 °C (0.1 °C/step) Room temperature setting range 5 °C ∼ 35 °C accuracy + 0.5 °C Receiver input voltage 240 V ac, 50 Hz Receiver – output voltage 24 -240 V ac, 50/60 Hz, 10 (3)A max. Operating temperature: 0 °C to 50 °C Storage temperature -10 to 60 °C Terminals 2.5 mm2 cable Sensor element NTC thermistor LCD screen backlight Electronic control Type 2.B Action Transmitter/Battery 2 x 1.5 V AAA- alkaline manganese battery (not included) Color: White.
