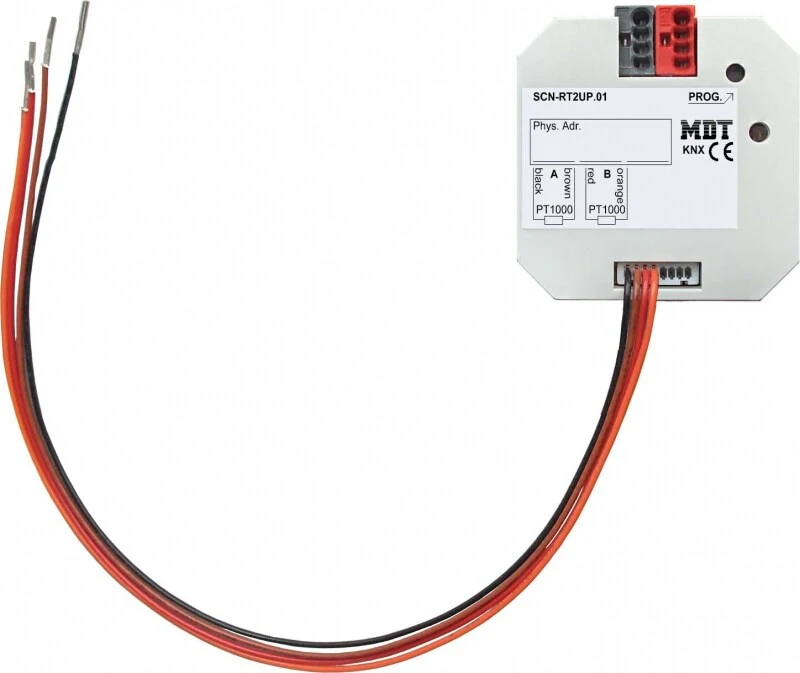

MDT Temperature Controller/sensor

MDT technologies Temperature controller/sensor SCN-RT2UP.01 Manufacturer: MDT technologies Designation: Temperature controller/sensor 2-fold flush-mounted, for PT1000 Type: SCN-RT2UP.01 Bus system KNX: yes Bus system KNX radio: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without Radio bidirectional: no Mounting type: flush-mounted With on-site operation: no With theft/dismantling protection: no With LED display: no With display: no Material: plastic Material quality: thermoplastic Surface protection: other Color: other Transparent: no External sensor: yes Manual setpoint adjustment: no Presence pushbutton: no Parallel operation possible: yes Protection class (IP): IP20 With bus coupling: yes Min. Depth of device box: 35 mmMDT technologies temperature controller/sensor SCN-RT2UP.01: further detailsTemperature controller/sensor 2-fold, flush-mounted, for PT1000 temperature sensor. For installation in the switch box. Temperature measurement is done by external PT 1000 sensors. For measuring indoor/outdoor temperature (e.g. with SCN-PTST1.01 or SCN-PTST3.01) Temperature range -20 to +110°C. 2-fold temperature sensor for heating/ventilation, integrated controller. Controller type (2-point, PI, PWM) or sensor operation selectable. Temperature measurement via external PT 1000 sensor. Limit values min/max, frost/heat alarm, min/max value memory. Cyclic transmission adjustable. Day/night/frost/heat protection mode, cooling function. Status feedback via HVAC and RHCC status objects. Switching of operating mode via bit/byte objects. Setpoint specification via visualization, e.g. MDT VisuControl. , EAN: 4251916111649.
