MDT Room Temperature Controller

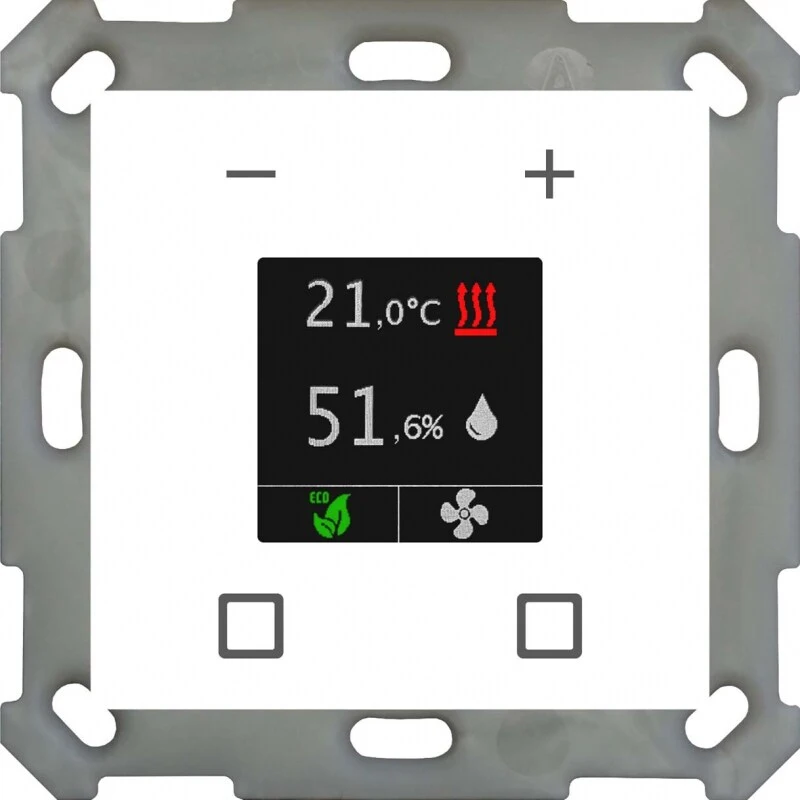

MDT technologies Room temperature controller Smart SCN-RTR55S.01 Manufacturer: MDT technologies Designation: Room temperature controller Smart rws/glossy Type: SCN-RTR55S.01 Bus system KNX: yes Bus system KNX radio: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: without Radio bidirectional: no Mounting type: flush-mounted With on-site operation: yes With theft/dismantling protection: no With LED display: no With display: yes Number of digital inputs: 4 Material: Plastic Material grade: Thermoplastic Surface protection: other Surface finish: glossy Color: white RAL number (similar): 9010 Transparent: no External sensor: no Manual setpoint adjustment: yes Presence pushbutton: no Parallel operation possible: yes Protection class (IP): IP20 With bus coupling: yes Min. Depth of device box: 35 mmMDT technologies room thermostat Smart SCN-RTR55S.01: further detailsRoom thermostat Smart 55, pure white glossy. With color display, temperature/humidity sensor and 4 inputs. Mounting in switch box. Integrated bus coupling unit. Suitable for 55mm switch ranges e.g.: GIRA Standard 55, E2,E22, Event, Esprit, BERKER S1, B3, B7, JUNG A 500, A PLUS, A CREATION, AS 500, A 550, A FLOW, MERTEN 1M, M-Smart, M-Plan, M-Pure. Active color display for function and status indication. Background color w/s and display brightness adjustable. Display of set and actual temperature. Room temperature controller for indoor use. Measuring range -10 to +50°C. Controller type (2-point, PI, PWM) selectable. Simple setpoint adjustment via separate +/- keys. 1Bit +/-, 1Byte or 2Byte absolute object for setpoint adjustment. Storage of setpoints in case of bus voltage failure. Limit values min/max, frost alarm, min/max memory. Switching of the operating mode via bit/byte objects. Temperature and humidity sensor with calculation of dew point. Message when leaving the comfort range. 4 binary inputs for connecting potential-free contacts (pushbuttons, switches, window contacts). Ventilation control with manual or automatic operation. 14 byte object for plain text diagnosis. Installation in switch box with supplied support ring. Recommended mounting height: 1.6m. Integrated bus coupler. , EAN: 4251916111724.
