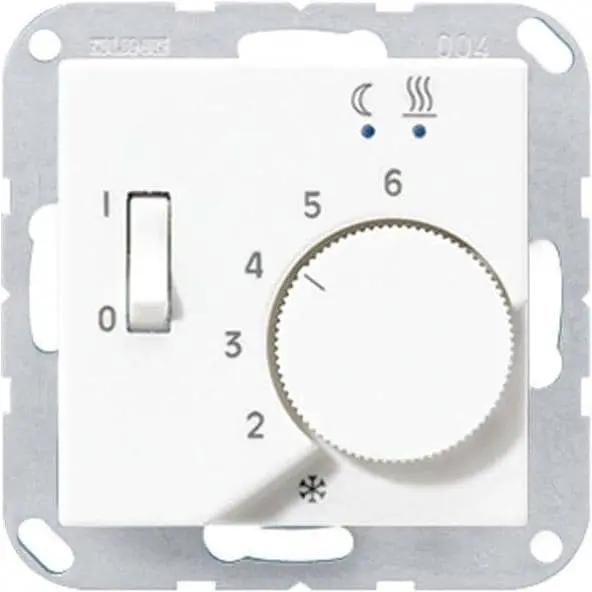

Jung Floor Heating Controller

Jung floor heating controller aws FTR A 231 WW Manufacturer: Jung Designation: Floor heating controller aws 1-pin Schl.Controller aws 1-pole Schl.AC 230V Type: FTR A 231 WW Design: branded Type of power supply: 230 V AC Connection: 2-wire With receiver: no Measuring range: 10…50 °C Sensor external: yes Thermal feedback: without Suitable for heating: yes Number of outputs heating: 1 Suitable for cooling: no Differential value: 1 K Differential adjustable: no Temperature readable: no With noise level indicator: no Type of transducer/sensor: other Mounting type: flush-mounted With display: no Operation: rotary With drinking water circuit: no Contact type: normally open contact (NO) Max. Voltage of contacts: 230 V Protection class (IP): IP31 Color: white RAL number: 9010 Height: 55 mm Width: 55 mmJung floor heating.Controller aws FTR A 231 WW: more detailswith spring terminals for rigid conductors up to 2.5 mm2 (screw fixing, without fixing claws) 1-pole NO contact 10 A, AC 230 V ~, 50/60 Hz for controlling electric floor heating and floor temperature control systems with NTC remote sensor: 4 m long, 7.8 mm Ø The floor temperature is controlled Switching differential approx. 1 K, temperature range approx. +10 … +50 °C separate connection for time-controlled night setback approx. 5 K with switch on-off LED red: control unit requests heat (heating mode) LED green: temperature setback On relay contact not potential-free Heating interruption according to EN 50559: Within one hour of continuous heating, the room temperature controller automatically interrupts the heating process for 5 minutes. , EAN: 4011377046306.
