IVF Hartmann Evaluation Unit

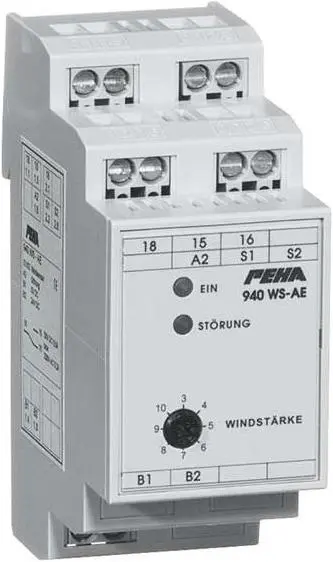

Peha Evaluation unit D 940 WS-AE Manufacturer: Peha Designation: Evaluation unit for wind sensor Type: D 940 WS-AE Bus system KNX: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: PHC Design: Wind sensor Mounting type: REG With bus coupling: no With DCF77: no Acoustic signal: no With heating: no Color: white Analog input: no Weather station: yes Protection class (IP): IP20Peha evaluation unit D 940 WS-AE: more detailsEvaluation unit for wind sensor for connection of 1 wind sensor item no. 940 WS, rail mounted unit, 36 mm wide (2 TE),supply 24 V DC, e.g. from PHC power supply 940 SPV, own consumption 10 mA, switching threshold 3-10 adjustable in 8 steps (corresponds to approx. 3.6 m/s to 24 m/s), switch-on time delay approx. 10 sec, switch-off time delay approx. 10 min. after falling below the next lower wind force, potential-free relay output, change-over contact, switching capacity 230 V AC, 2 A or max. 50 V DC, 0.5 A , EAN: 4010105241518.
