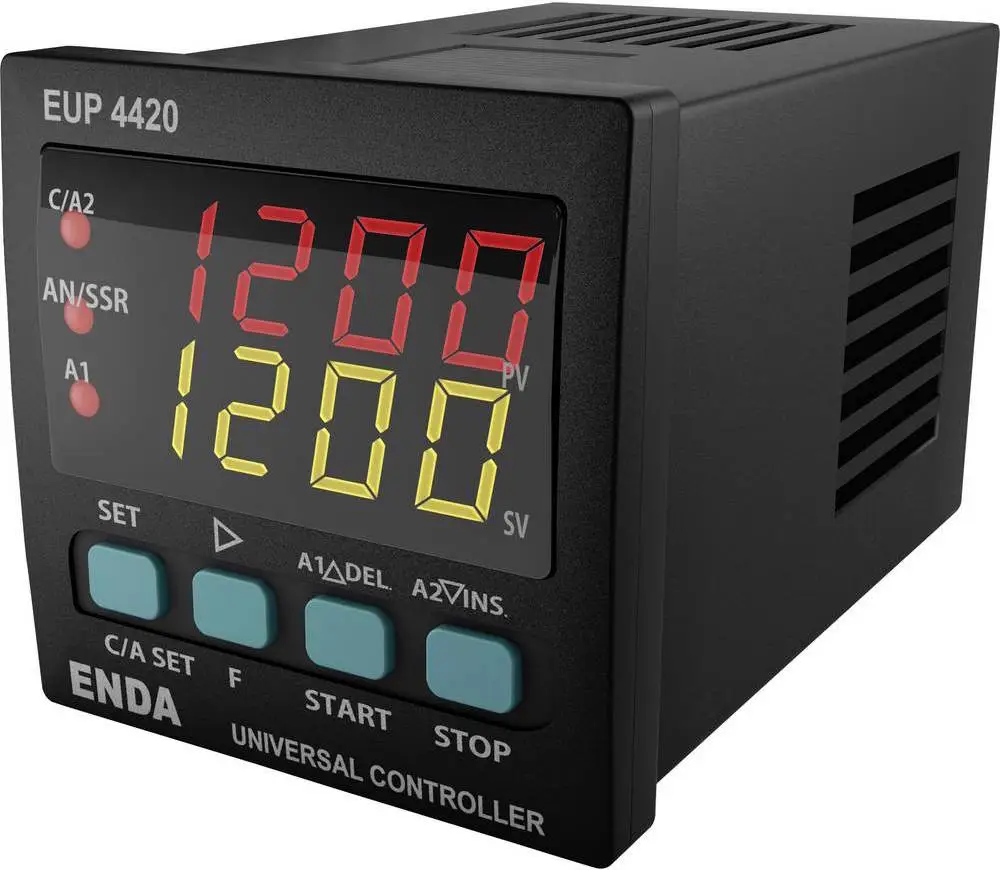

Enda EUP4420-230 PID Universal Controller Pt100, J, K, L, T, S, R SSR, Relay 8A (W X H) 48mm X 48mm

Universal 3-point PID controller, 48x48mm. Features: Two target values can be set. Analogue output can be set for 0-20mA, 4-20mA, 0-10V, 2-10V, 0-25mV or 0-50mV. Measuring input for thermocouples, PT100, J, K, L, T, S, R, mA, mV, V. Automatic calculation of PID parameters (SELFTUNE).Function as three-point control or engine valve control.Three different functions can be assigned to the digital input. Three different functions can be assigned to the F key. Soft start (time specification for setpoint). Control output selectable relay, analogue or SSR output. Analogue output can be set as 0-20mA, 4-20mA or as SSR output. Ramp function up to 16 steps.A1 relay output can be set as alarm or PID relay output for cooling function. C/A2 relay output can be set as alarm or as control output for heating function. Offset setting for input variable. Heating or cooling function can be set.Periodic switching behavior of the relay can be set in case of sensor breakage.Programming via buttons or via Modbus protocol. This text is machine translated. Specifications: .Manufacturer part #: EUP4420-230 – Mounting type: Recess-mount – No. of digital inputs: 1 – No. of relay outputs: 2 – Operating voltage: 230 V AC – Outputs (thermostats): SSR, 8 A relay – Product size (height): 48 mm – Product size (width): 48 mm – Product type: Universal controller – Recess depth: 87 mm – Sensor type: Pt100, J, K, L, T, S, R – Thermostat type: PID – Type (manufacturer type): EUP4420-230.
