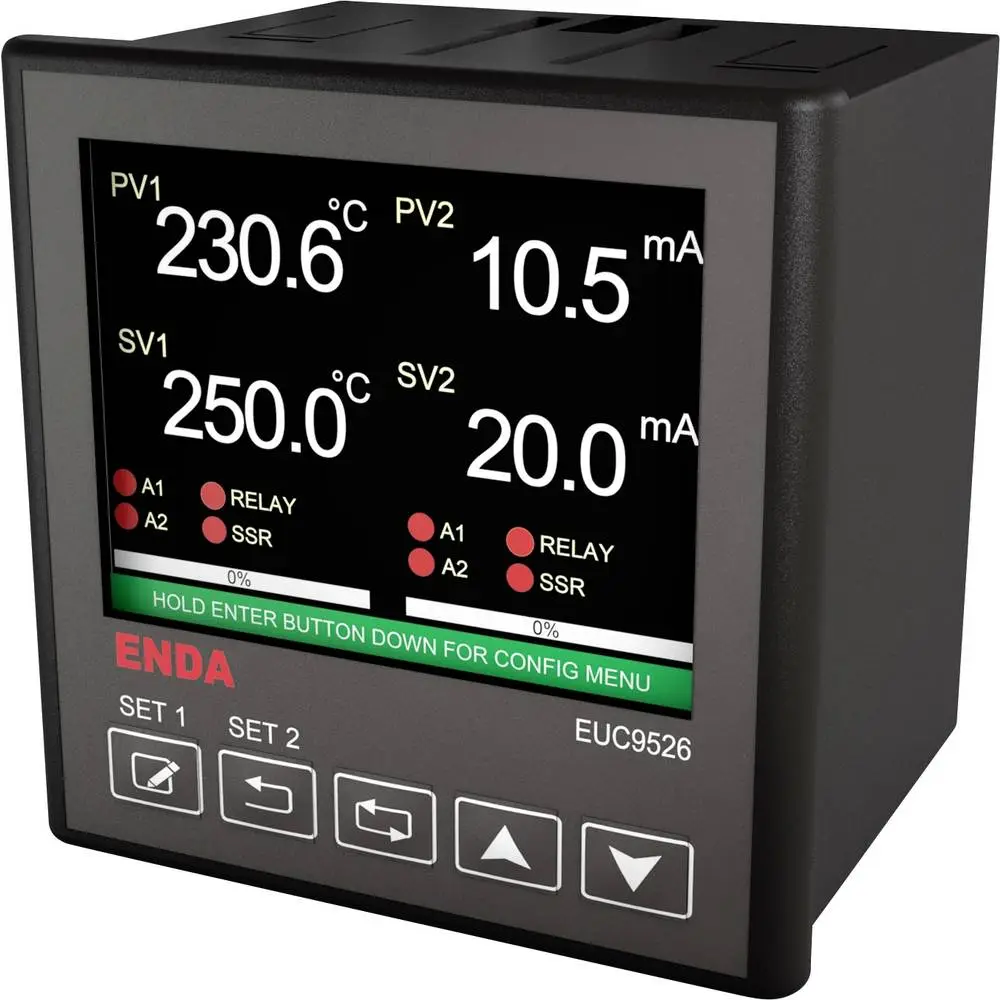

Enda EUC9526 UNIVERSAL CONTROLLER

ENDA EUC9526 UNIVERSAL CONTROLLER. Features: .3.5″, 5-digit graphical TFT display.Two sensor inputs can be used for TC, RTD, NTC, R, mA, V or mV. Selectable analogue, SSR or relay control output. Input-dependant signal switching as output (mA or V). 50ms sampling time. PID control.PID self-tuning (Selftune).PID automatic setting (Auto tune). Offset setting for input variable.32 point linearization can be configured for analog inputs.Soft start (time specification for setpoint). 24VDC for sensor supply. Periodic switching behavior of the relay can be set in case of sensor breakage. Security levels for the menu and configuration pages. Programming via keys or RS485 Modbus interface. This text is machine translated. Specifications: .Manufacturer part #: EUC9526-230 – Mounting type: Recess-mount – No. of relay outputs: 3 – Operating voltage: 230 V AC – Outputs (thermostats): 2 A relay, SSR – Product size (height): 96 mm – Product size (width): 96 mm – Product type: Universal controller – Recess depth: 81 mm – Sensor type: B, E, J, K, L, N, R, S, T, U, Pt100, NTC – Thermostat type: PID – Type (manufacturer type): EUC9526-230.
