Busch-Jaeger Control Element

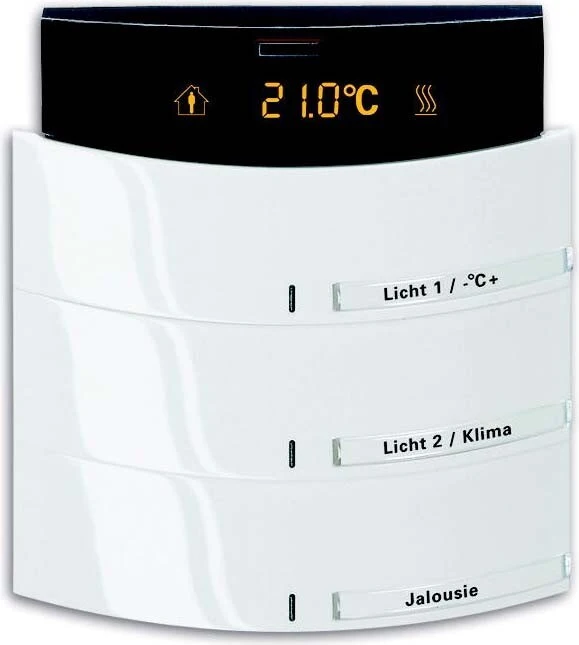

Busch-Jaeger Operating element 3/6-fold 6321/38-24G Manufacturer: Busch-Jaeger Designation: Operating element 3/6-fold w.IR RTR,studio white Type: 6321/38-24G Bus system KNX: yes Bus system KNX radio: no Bus system radio bus: no Bus system LON: no Bus system Powernet: no Other bus systems: other Assembly: control element Mounting type: flush-mounted With on-site operation: no With theft/dismantling protection: yes With LED display: yes With display: yes Material: Plastic Material grade: Thermoplastic Surface protection: Untreated Surface finish: Glossy Color: White RAL number (similar): 9016 Transparent: no External sensor: no Manual setpoint adjustment: yes Presence pushbutton: yes Parallel operation possible: yes Protection class (IP): IP20 With bus coupling: yes Temperature controller class: I Min. Depth of device box: 33 mmBusch-Jaeger Operating element 3/6-fold 6321/38-24G: further detailsWith integrated KNX bus coupling unit. With labeling field. Push-button function (switching/dimming/blinds/sending value/light scenes/ventilation function) master/slave operation. With base load operation. Control element with room temperature controller function for controlling heating, ventilation and fan coil actuators. The controller is a continuous room temperature controller for fan coils in 2- and 4-pipe systems and conventional heating or cooling systems The fan stage can be switched manually or to automatic mode For control by Busch-Ferncontrol® IR hand-held transmitter 6010-25 or 6020-…/6021… . Temperature controller class: 1 Contribution to room heating energy efficiency: 1.0%. If required, please refer to the current application description for the programmable functions, which can be downloaded from our website www.busch-jaeger.de. Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de. , EAN: 4011395201343.
