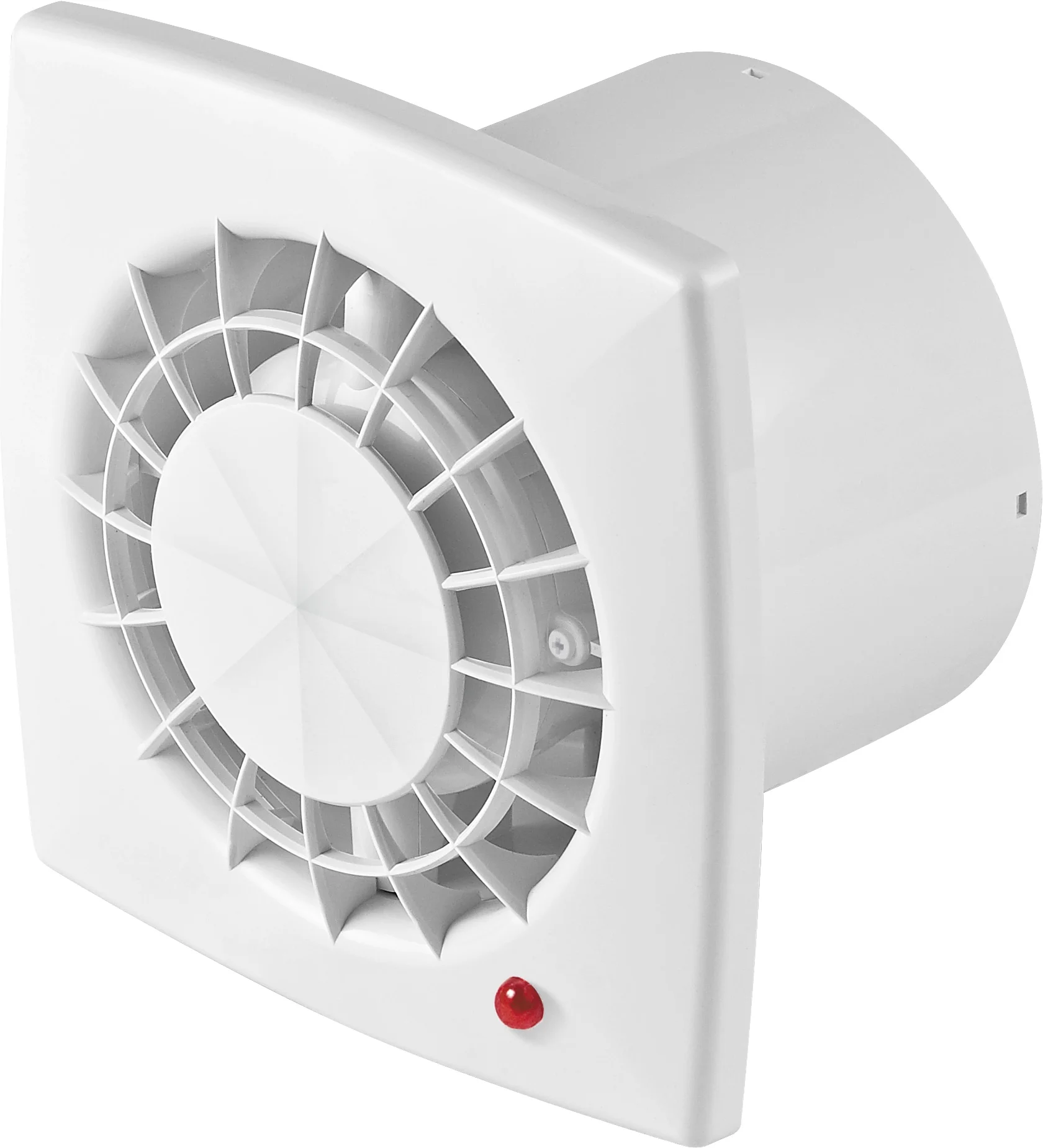

Awenta Vega 150

Dimensions and technical details 220-240 V ~ 50 Hz Housing colour: white Housing material: UV-resistant ABS Nominal size: 150 mm Wattage: 17 W Speed levels: 1 Max. airflow rate: 225 m³/h Sound pressure level Lp-3m: 43 dB(A)Total pressure Pmax.: 48 Pa IP rating: IPX4Max. ambient temperature: +40°C Diameter pipe connection: 150 mm Front cover: 201 x 201 x 21 mm Total depth: 104 mm Weight: 0.9 kg Adjustable shut-off timer (3 – 30 min): fan turns off after expiration of the pre-set time Mounting options: wall, ceiling Application: direct connection to the ventilation shaft.
