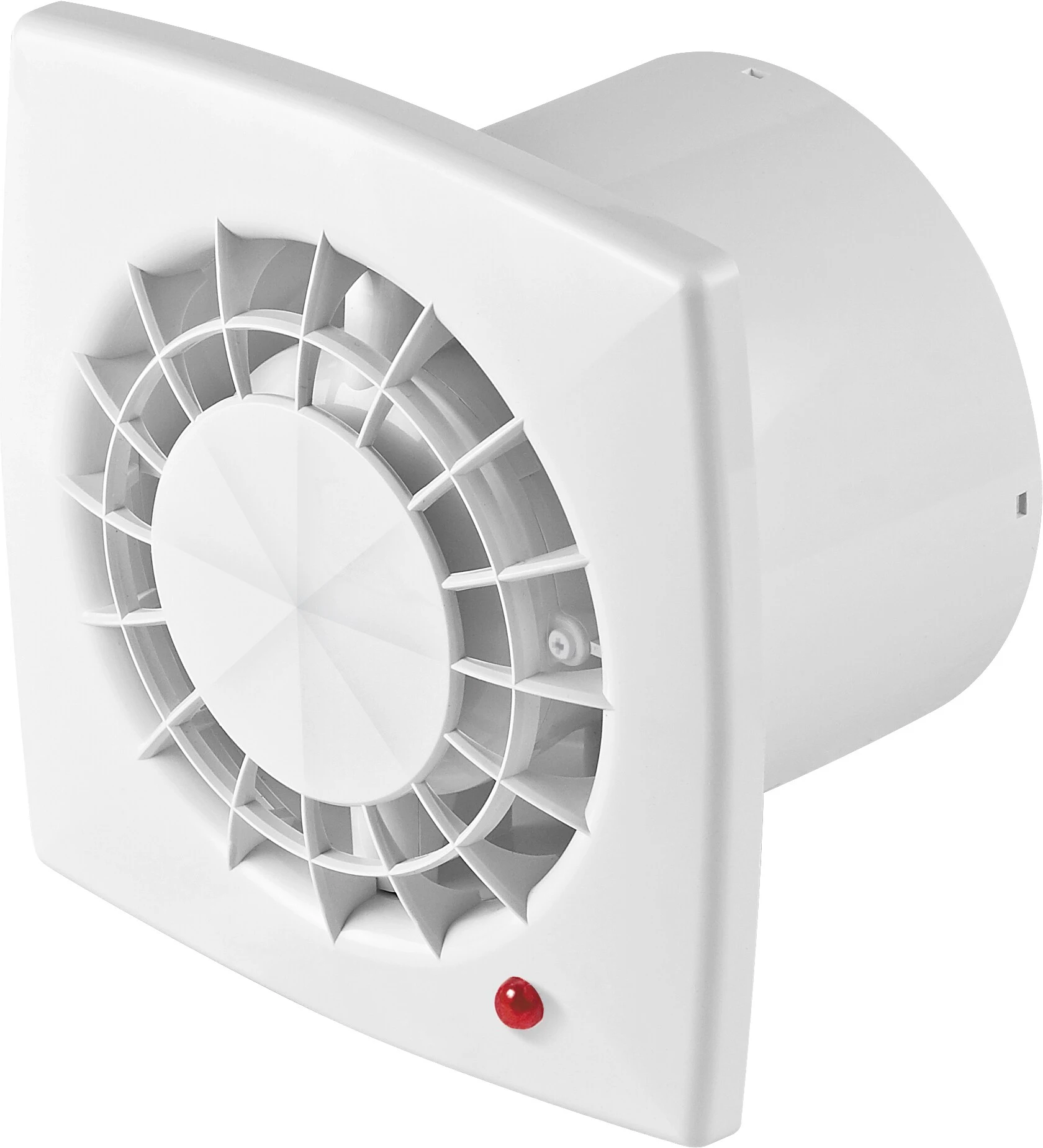

Awenta Vega 125

Dimensions and technical details 220-240 V ~ 50 Hz Housing colour: white Housing material: UV-resistant ABSSpeed levels: 4 Nominal size: 125 mm Wattage: 5 / 7 / 10 / 16 W Airflow rate: 50 / 80 / 120 / 180 m³/h Sound pressure level Lp-3m: 19 / 26 / 31 / 39 dB(A)Total pressure Pmax.: 5 / 10 / 20 / 50 Pa IP rating: IPX4Max. ambient temperature: +40°C Diameter pipe connection: 125 mm Front cover: 172 x 172 mm x 18 mm Total depth: 95 mm Weight: 0.7 kgIntegral speed regulator: 4 speeds / off Adjustable timer: 5 – 30 min shut-off delay, 1 – 10 h interval Mounting options: wall, ceiling Application: direct connection to the ventilation shaft.
