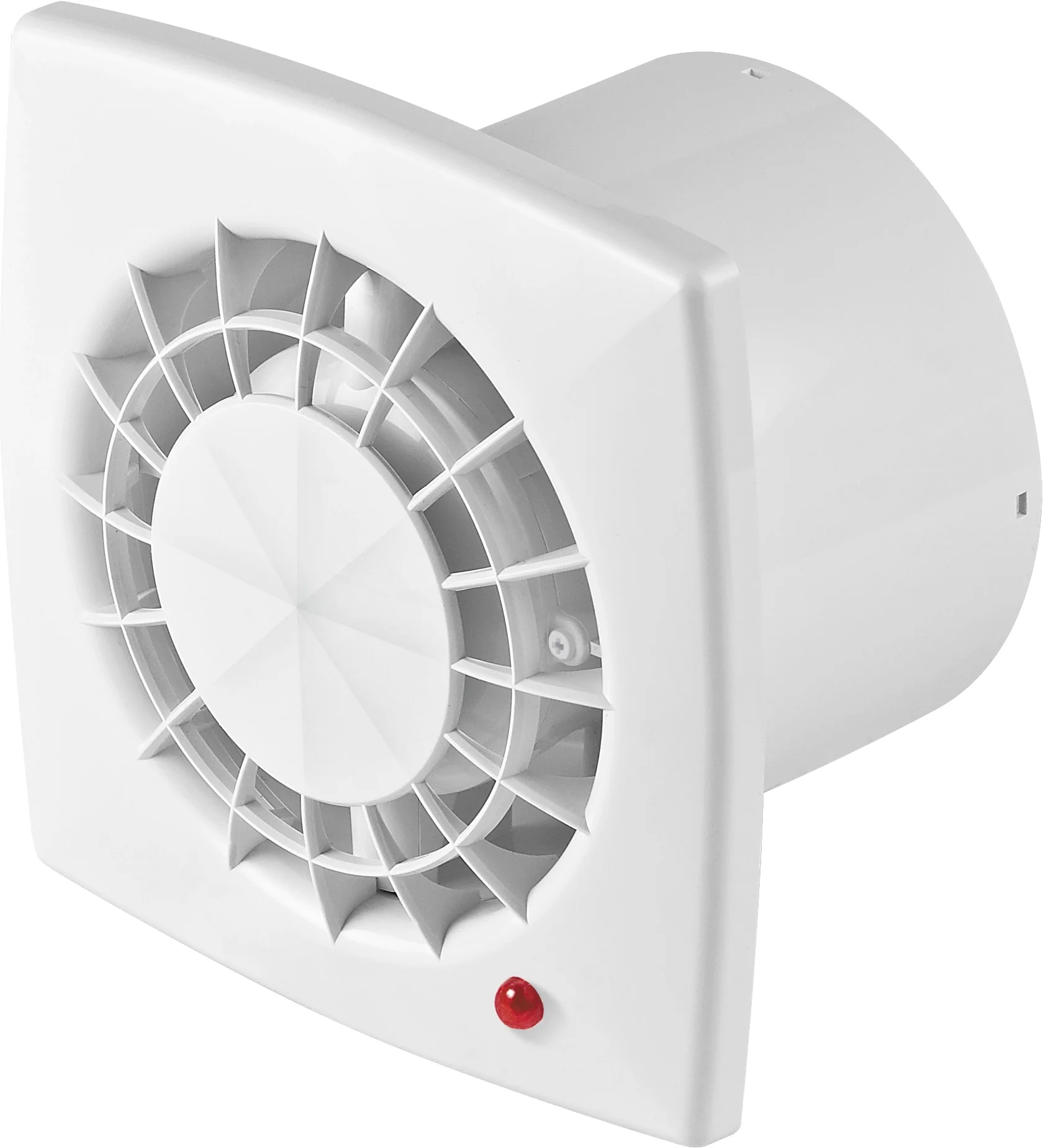

Awenta Vega 100

Dimensions and technical details 220-240 V ~ 50 Hz Housing colour: white Housing material: UV-resistant ABS Nominal size: 100 mm Wattage: 13 W Speed levels: 1 Max. airflow rate: 95 m³/h Sound pressure level Lp-3m: 36 dB(A)Total pressure Pmax.: 38 Pa IP rating: IPX4Max. ambient temperature: +40°C Diameter pipe connection: 100 mm Front cover: 140 x 140 mm x 18 mm Total depth: 95 mm Weight: 0.7 kg Adjustable shut-off timer (3 – 30 min), humidity sensor (40 – 90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value Mounting options: wall, ceiling Application: direct connection to the ventilation shaft.
