ALRE Room Temperature Controller

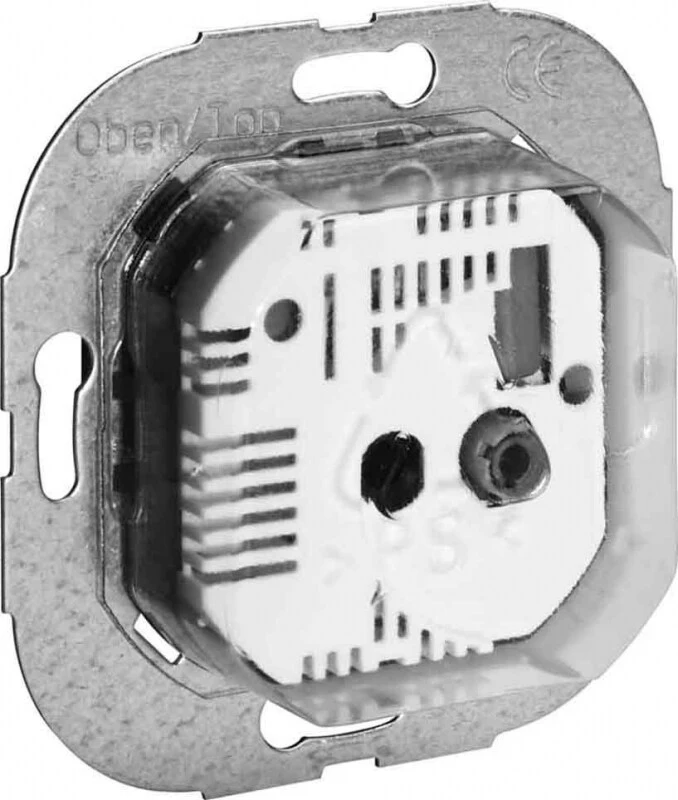

Alre-it Room temperature controller UP FTR 101.000#00 Manufacturer: Alre-it Designation: Room temperature controller UP NC contact,10A,5-30degrees Type: FTR 101.000#00 Design: On/Off Type of power supply: 230 V AC Connection: three/four-wire With receiver: no Measuring range: 5…30 °C Sensor external: no Suitable for heating: yes Number of outputs heating: 1 Suitable for cooling: no Differential value: 0.5 K Differential adjustable: no Temperature readable: no Transducer/sensor type: bimetal Mounting type: flush-mounted With display: no Operation: rotary With drinking water circuit: no Contact type: normally closed (NC) Max. contact voltage: 240 V Voltage of contacts: 240 V Max. Contact load: 10 A Protection class (IP): IP30 Explosion-proof: no Color: other RAL number: 9010 Height: 85 mm Width: 81 mm Depth: 42.5 mmAlre-it room thermostat UP FTR 101.000#00: more detailsElectromechanical flush-mounted room thermostat for controlling or monitoring temperatures in offices, living rooms and hotels. In connection with the corresponding cover set suitable for all common switch programs. Matching cover set no. JZ-001.xxx. Suitable for all types of heating. Due to the thermal feedback a very accurate switching differential is achieved. The setting range can be changed with the range restriction located under the setting knob. VDE tested. , EAN: 4050528057792.
