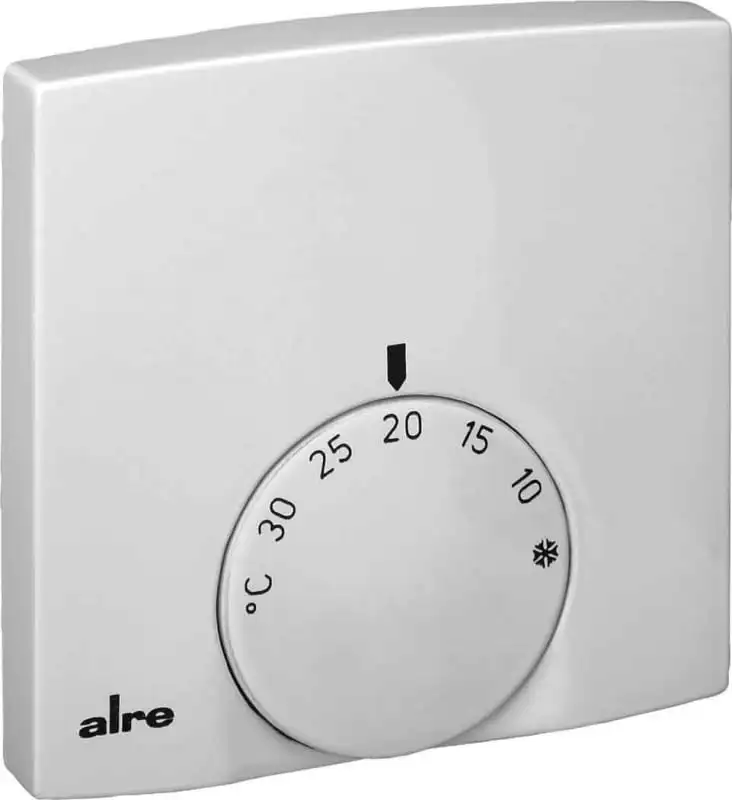

ALRE Room Temperature Controller

Alre-it Room thermostat AP RTBSB-201.000 Manufacturer: Alre-it Designation: Room thermostat AP 5-30C,normally closed2A,230V Type: RTBSB-201.000 Design: On/Off Type of power supply: 230 V AC Connection: three/four-wire With receiver: no Measuring range: 5…30 °C Sensor external: no Suitable for heating: yes Number of outputs heating: 1 Suitable for cooling: no Number of outputs cooling: 1 Differential value: 0,5 K Differential adjustable: no Temperature readable: no With noise level indicator: no Type of transducer/sensor: bimetal Mounting: surface-mounted With display: no Operation: rotary With drinking water circuit: no Contact type: NC Max. Voltage of contacts: 230 V Max. Contact load: 2 A Protection class (IP): IP30 Explosion-proof: no Color: pure white RAL number: 9010 Height: 78.5 mm Width: 78 mm Depth: 13.9 mmAlre-it room thermostat AP RTBSB-201.000: more detailsElectromechanical room thermostat in super-flat surface-mounted housing (only 13.9mm deep) for controlling or monitoring temperatures in offices, living rooms and hotels. Due to the thermal feedback a very accurate switching differential is achieved. With the range narrowing located under the adjustment knob, the adjustment range can be changed.nSuitable for hot water heating systems. , EAN: 4050528049933.
